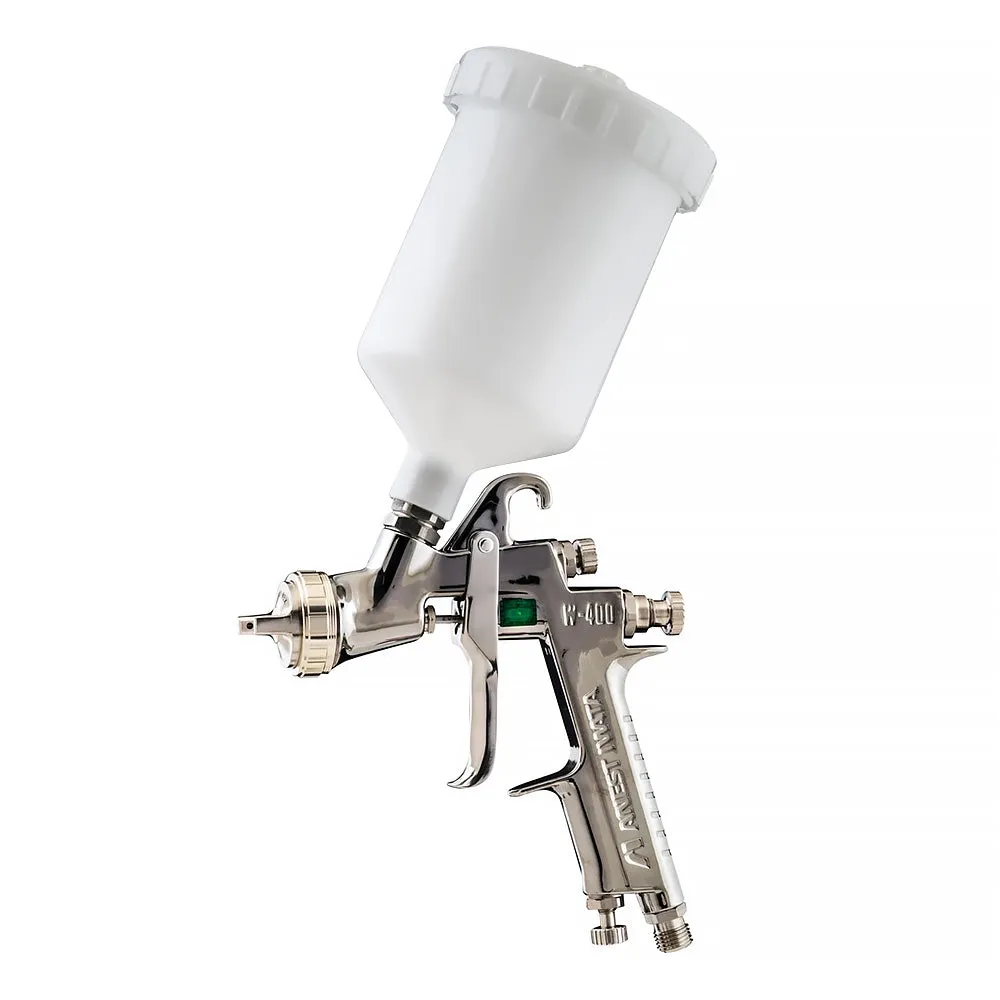

＋ANEST IWATA W400WBX Air Cap High TEC Gold Gravity Spray Gun With 600ml Pot
W400 High TEC Spray Gun, WBX Air Cap, complete with 600ml Pot. Improved atomization with waterbased coatings. The WBX applies waterborne basecoats and HS clearcoats with superior atomization and control.

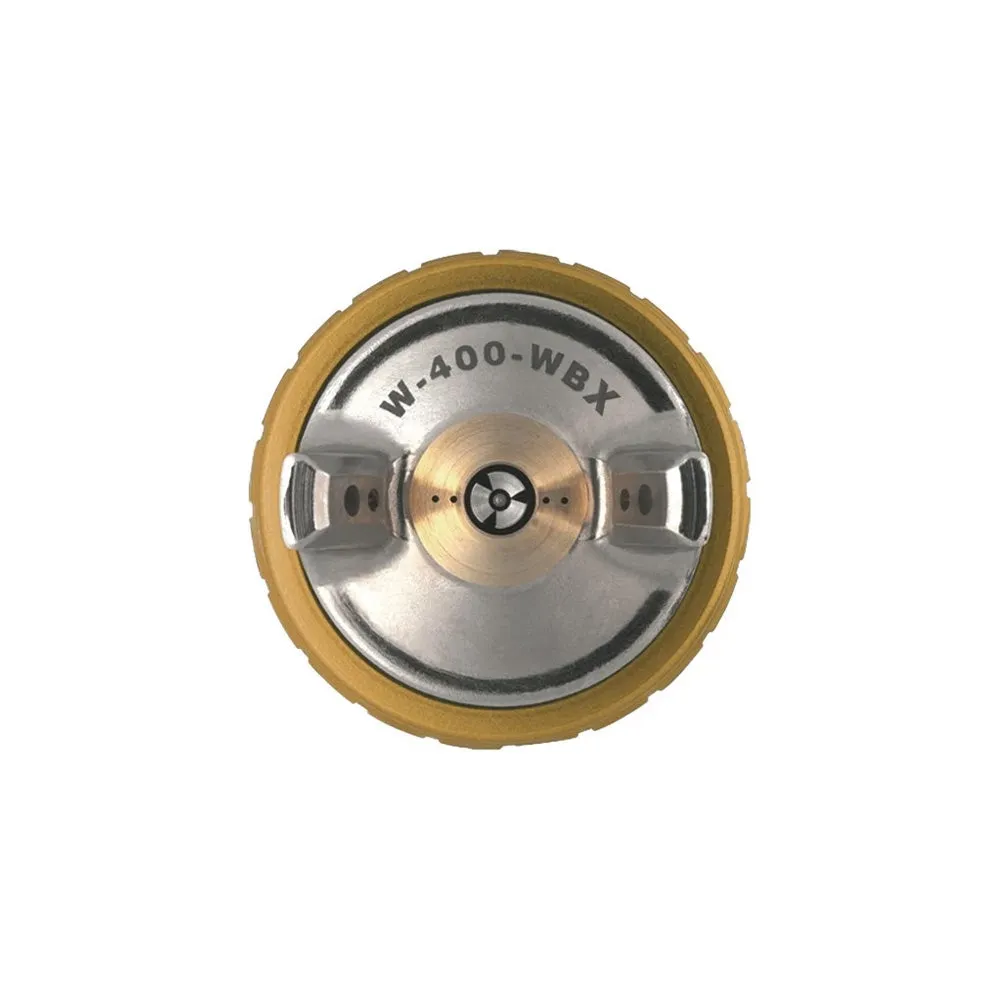

The WBX air cap has a long, flat, fan pattern, which gives an even overlap on modern paints. This is essential for mottle-free basecoat application and a flat and even lay down on clears.
The WBX delivers a consistent droplet size when atomizing. This is vital to achieve a consistent application of waterborne basecoats.
Fluid delivery control is essential for colour reproduction of waterborne basecoats.
Specifications
| Part No. | Fluid Nozzle Size [mm] | Air Pressure@ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | |
| W400WBX124GC | 1.2 | 2 | 370 | 150 | 360 | WBX | |
| W400WBX134GC | 1.3 | 2 | 370 | 195 | 390 | WBX | |
| W400WBX144GC | 1.4 | 2 | 370 | 200 | 390 | WBX |
